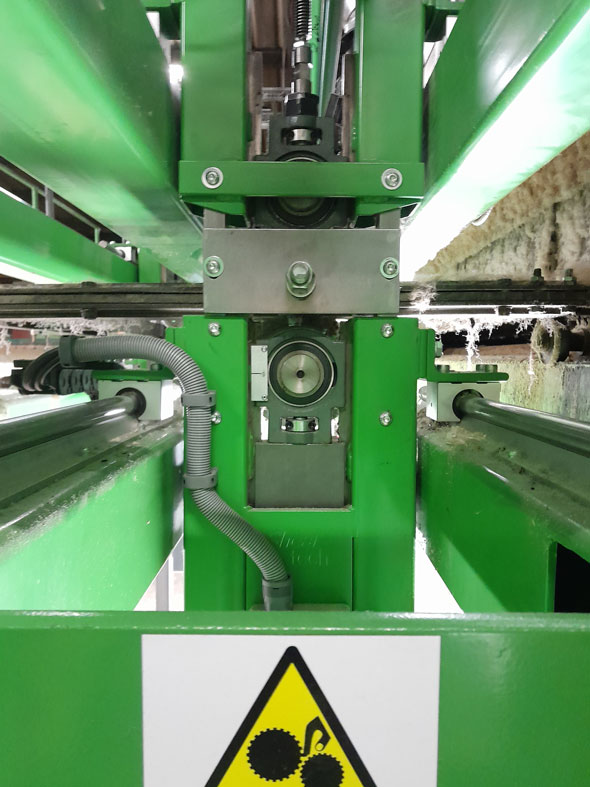

Restoring reliability in a nip roller lamination system (Penthouse Carpets)
Penthouse Carpets commissioned Barair to investigate persistent alignment and lamination quality issues on a 5m nip-roller system used to compress carpet and backing fabric prior to latex curing. The objective was to restore repeatable operation and provide a clear, implementable improvement plan. This case study outlines the critical role of nip roller lamination in ensuring high-quality carpet production.
The problem
The nip-roller system was frequently going out of alignment, causing uneven lamination (and in some cases no lamination), with direct impact on production stability and product quality. The system was intended to be self-adjusting and maintain even pressure across the working width.
Constraints and inputs
- Wide-format process equipment (up to ~5 m working width)
- Limited access to full OEM design schematics initially
- Existing load-cell system providing an averaged output signal
- Requirement to minimise disruption to production (works planned around operating days)
Work performed
- On-site assessment and review of the nip-roller arrangement and failure modes
- Review of load-cell signal architecture and options to obtain individual end readings rather than an averaged value
- Development of a staged improvement concept, including:
- Additional independent feedback signals to the PLC
- Additional distance sensing to detect misalignment / “crabbing”
- Control panel modification concept (additional inverter drives, I/O capacity checks)
- Protection and operational improvements (e.g., clearer fault indication)
Deliverables
- Evidence-led findings and a structured improvement plan
- Practical control-panel modification concept for contractor implementation
- Installation planning approach designed to avoid production disruption
- Ongoing coordination with specialist suppliers / automation partner
Key deliverables
Engineering findings summary with prioritised actions
Modification options with build/installation considerations
Practical drawings / notes to support manufacture and fit-up
Commissioning and adjustment guidance to reduce repeat failures
Close-out summary suitable for internal sign-off
